Product Overview

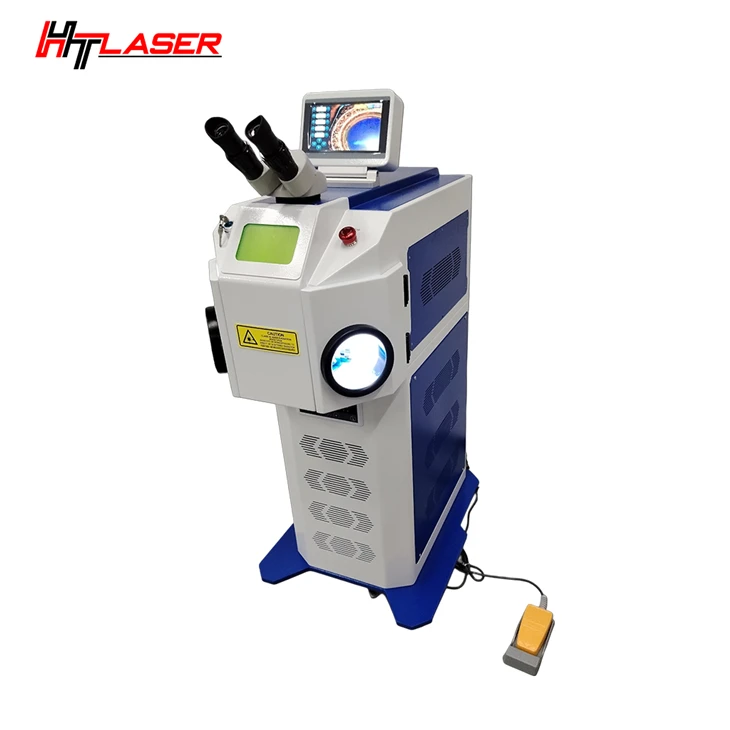

Lub Laser Welder rau Kev Kho Cov Nyiaj Kub nrog CCD yog lub tshuab hluav taws xob laser welding rau siab - kho qhov tseeb thiab koom nrog kub, platinum, nyiaj thiab lwm yam khoom muaj txiaj ntsig zoo.

Technical Parameters & Model Options

Yam khoom	HT-W150	HT-W200
Laser zog	150 W	200 W
Tag Nrho Lub Zog	6 kWm	9 kW ua
Screen	7-nti HD zaub screen	7-nti HD zaub screen
Microscope	10X	10X
Lub Hwj Chim Kev Cai Ntau Yam	1–100%	1–100%
Ntau zaus	1-30 Hz	1-30 Hz
Lub wavelength	1064nm ua	1064nm ua
Pulse Dav	0.1-10 hli	0.1-10 hli
Kev kho qhov chaw	0.1-3.0 hli	0.1-3.0 hli
Yam tsawg kawg nkaus	0.3mm ib	0.3mm ib
Txias System	Dej txias	Dej txias
Fais fab mov	AC220V ± 10%, 50/60 Hz	AC220V ± 10%, 50/60 Hz

Ntsiab nta

Siab -txhais CCD saib qhov system nrog 10X microscope kom pom tseeb thiab meej qhov chaw vuam.

Pulsed laser welding nrog adjustable zog, zaus thiab mem tes dav rau kev tswj xyuas cov khoom muag muag hniav nyiaj hniav kub.

Weld point positioning precision ntawm tsawg dua los yog sib npaug li 0.1 hli rau rings, chains, prongs thiab lwm yam zoo hlau lug.

Thaum tshav kub kub- thaj tsam cuam tshuam tswj nyob rau hauv tsawg dua los yog sib npaug li 0.5 hli los pab txo cov thermal cuam tshuam ntawm cov hniav nyiaj hniav kub thiab chaw nyob ze.

Cov dej txias rau kev ua haujlwm ruaj khov thaum lub sijhawm ua haujlwm kho hniav nyiaj hniav kub, nrog kev txhawb nqa rau 24-teev kev ua haujlwm tas mus li.

Kev Ua Haujlwm & Kev Ua Haujlwm

Factory-calibrated system rau kev teeb tsa sai dua tom qab txuas hluav taws xob.

CCD saib thiab 10X microscope pab cov neeg ua haujlwm paub meej tias txoj haujlwm vuam ua ntej ua haujlwm.

Kov interface txhawb kev hloov kho yooj yim ntawm lub zog, zaus, mem tes dav thiab qhov chaw loj.

Pulsed laser welding muab kev tswj cov cua sov nkag mus rau qhov chaw kho xaiv.

Weld cov txiaj ntsig tuaj yeem raug tshuaj xyuas los ntawm kev saib xyuas ua ntej polishing lossis kho ntxiv.

Tej kev siv

Laser Welding rau Kub Nplhaib Kho & Resizing
Nplhaib resizing, kho tawg thiab tawg sib koom vuam rau cov nplhaib kub thiab cov hniav nyiaj hniav kub.

Platinum Prong Kho
Prong rebuilding thiab claw kho rau gemstone -mounted platinum rings thiab pendants.

Silver Chain Vuam
Kev sib txuas, hlua khi thiab txuas txuas rau cov nyiaj saw thiab cov hlua.

Cov hniav nyiaj hniav kub sib koom kho
Localized sib koom welding rau tsej, necklaces, bangles thiab hniav hniav nyiaj hniav kub qhov chaw.

Qhov Me Me Filling
Pinhole filling, kho hniav thiab kho qhov tsis xws luag ntawm cov khoom siv hlau zoo nkauj.

Kho kom zoo nkauj kho kom zoo nkauj
Fine welding rau nyias npoo, cov ces kaum me, prongs thiab lub teeb yuag hlau qauv.

Me Me Hlau Accessory Vuam
Precision vuam rau cov tsom iav tsom iav, saib qhov chaw, ornaments thiab me me hlau accessories.

Customization Options

Voltage & Plug
Voltage, zaus thiab plug hom tuaj yeem kho rau ntau lub teb chaws thiab cheeb tsam.

Logo & Nameplate
Logo, nameplate thiab cov khoom txheeb xyuas tuaj yeem raug kho rau OEM xaj.

Tshuab Configuration
Laser hwj chim, CCD system, microscope, accessories thiab spare qhov chaw tej pob khoom yuav xaiv tau.

Vim li cas thiaj xaiv peb?

20+ xyoo ntawm cov cuab yeej laser kev paub npog R&D, precision manufacturing thiab industrial daim ntawv thov engineering.

Customized kev txhawb nqa rau kev soj ntsuam cov txheej txheem, cov cuab yeej teeb tsa, kev tsim kho thiab kev sib koom ua ke ntawm cov kab ntau lawm.

Ntau- txheej txheem laser muaj peev xwm npog vuam, txiav, tu, cladding, stripping thiab precision khoom ua.

Kev paub dhau los ntawm EV, lithium roj teeb, semiconductor, photovoltaic, electronics thiab industrial manufacturing sectors.

Kev tswj xyuas kev ua tau zoo, kev tshuaj xyuas online thiab kev tsim khoom traceability los txhawb cov cuab yeej siv tau zoo thiab kev tswj xyuas cov txheej txheem.

CE, FDA thiab ISO9001: 2015 ntawv pov thawj, nrog rau 4 lub teb chaws invention patents thiab ntau tshaj 20 cov qauv siv hluav taws xob patents.

Kev txhawb nqa thoob ntiaj teb rau cov neeg siv khoom hauv 100+ lub teb chaws thiab cheeb tsam, suav nrog kev sib tham, kev teeb tsa, commissioning thiab tom qab - kev muag khoom.

FAQ

Q: Peb puas tuaj yeem kuaj cov qauv hniav nyiaj hniav kub ua ntej muab qhov kev txiav txim ntau?

A: Yog. Cov neeg yuav khoom tuaj yeem muab cov qauv coj los kuaj dawb los yog tus nqi -raws li kev sim raws li qhov yuav tsum tau ua. Kev ntsuam xyuas pab xyuas qhov kev ua tau zoo ntawm vuam, kev xaiv tus qauv, qhov ntsuas qhov ntsuas thiab CCD pom qhov tsim nyog ua ntej yuav khoom ntau.

Q: Lub sij hawm xa khoom zoo li cas rau lub tshuab laser welder?

A: Cov khoom siv txheem feem ntau yog xa tuaj hauv 1-6 lub lis piam, nyob ntawm kev teeb tsa thiab kev txiav txim kom muaj nuj nqis. Customized xaj yuav xav tau kev pom zoo ntxiv ua ntej ntau lawm.

Q: Koj puas tuaj yeem muab cov ntaub ntawv pov thawj rau ntshuam lossis xa tawm tshuaj xyuas?

A: Yog. Muaj cov ntaub ntawv pov thawj CE, FDA thiab ISO9001 tuaj yeem muab tshuaj xyuas. Cov neeg yuav khoom yuav tsum paub meej tias cov ntaub ntawv siv tau raws li lub hom phiaj kev ua lag luam, kev teeb tsa cov khoom lag luam thiab cov kev cai ntshuam.

Q: Peb puas tuaj yeem xaj cov qauv kev cai?

A: Yog. OEM / ODM customization tau txais kev txhawb nqa, suav nrog qhov hluav taws xob, hom lus thiab zoo li kev hloov kho. Kev txiav txim ntau kuj tuaj yeem npaj raws li kev yuav khoom.

Q: Yuav ua li cas tom qab- kev muag khoom txhawb nqa rau cov neeg yuav khoom thoob ntiaj teb?

A: Peb muab kev pab txhawb nqa online hauv lub neej, kev qhia ua haujlwm video, kev pab daws teeb meem thiab tom qab - kev muag khoom rau cov neeg yuav khoom thoob ntiaj teb. Standard spare qhov chaw yog muaj los txhawb kev txij nkawm thiab txo cov khoom siv downtime.

Cim npe nrov: Tuam Tshoj laser welder rau hniav nyiaj hniav kub kho nrog ccd, Tuam Tshoj laser welder kho hniav nyiaj hniav kub nrog ccd manufacturers, lwm tus neeg, Hoobkas

Laser Welder rau cov hniav nyiaj hniav kub kho nrog Ccd
